SERIES W - Bar Strap Type - Flat Cable Input

Current Viewing Resistors

Details

Terminating type CVR in flat configuration. Designed for systems utilizing very wide flat transmission lines where conventional current measurements are not possible. Insertion of two or more units in a row make it possible to measure current distribution within a transmission line.

Specifications

Click here to expand/collapse Specifications

Click on the model number to download the technical drawing in PDF format

2 1/2 Watts Per Unit Length

Model	Resistance ohms	Bandpass MHz.	Risetime nsec.	Emax joules	Length Inches	Quote

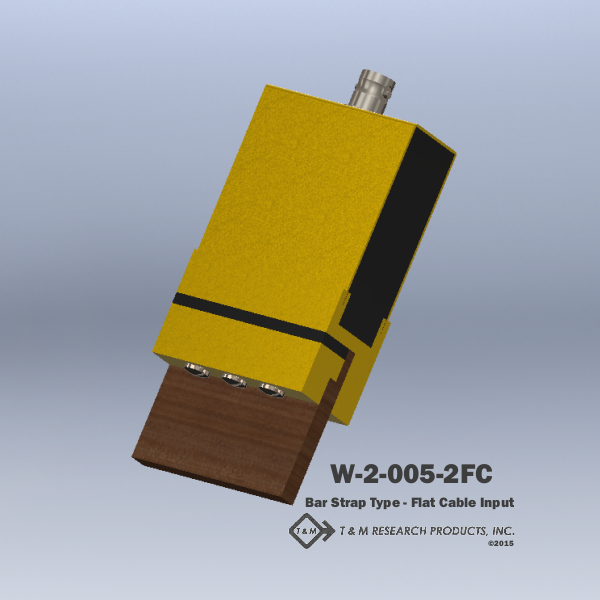

W-2-005-2FC	.005	400	2	125	2	Buy

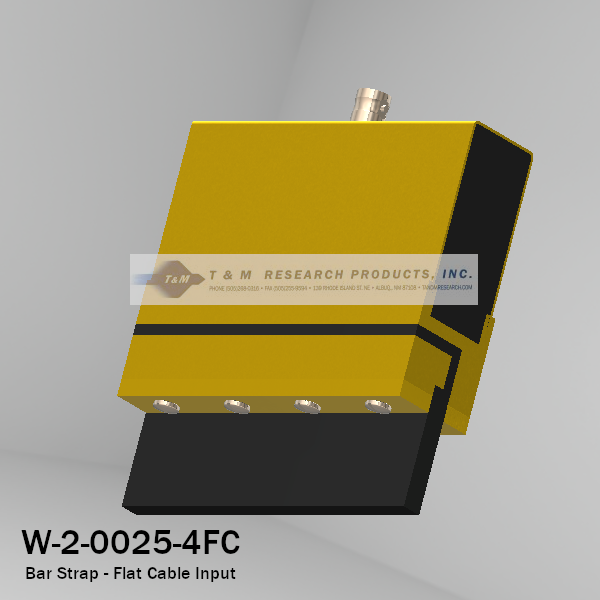

W-2-0025-4FC	.0025	400	2	275	4	Buy

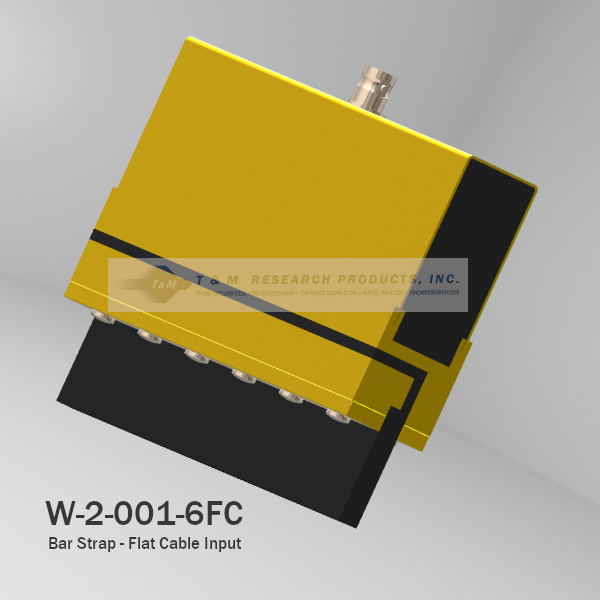

W-2-001-6FC	.001	400	2	275	6	Buy

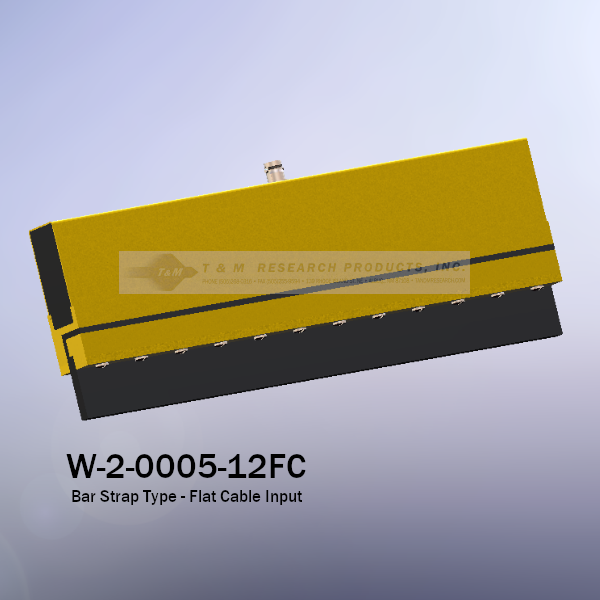

W-2-0005-12FC	.0005	400	2	550	12	Buy

Ordering Information

When ordering specify model number and tolerance.

Example: W-2-001-6FC.

For custom design unit please specify your requirements: Length of unit, resistance, joules, and mounting requirements.
